A hospital estates team assessing this band is usually deciding between two or three suppliers whose ratings all satisfy the load. What separates them sits elsewhere: how the set behaves in the first thirty seconds after a mains failure, whether it can be maintained without taking backup away, and whether the acoustic position works next to occupied wards. MPMC POWERTECH CORP., established in 2008 and headquartered in Shanghai Pudong, publishes configurations across this band and lists hospital critical-load installations in New Zealand and China.

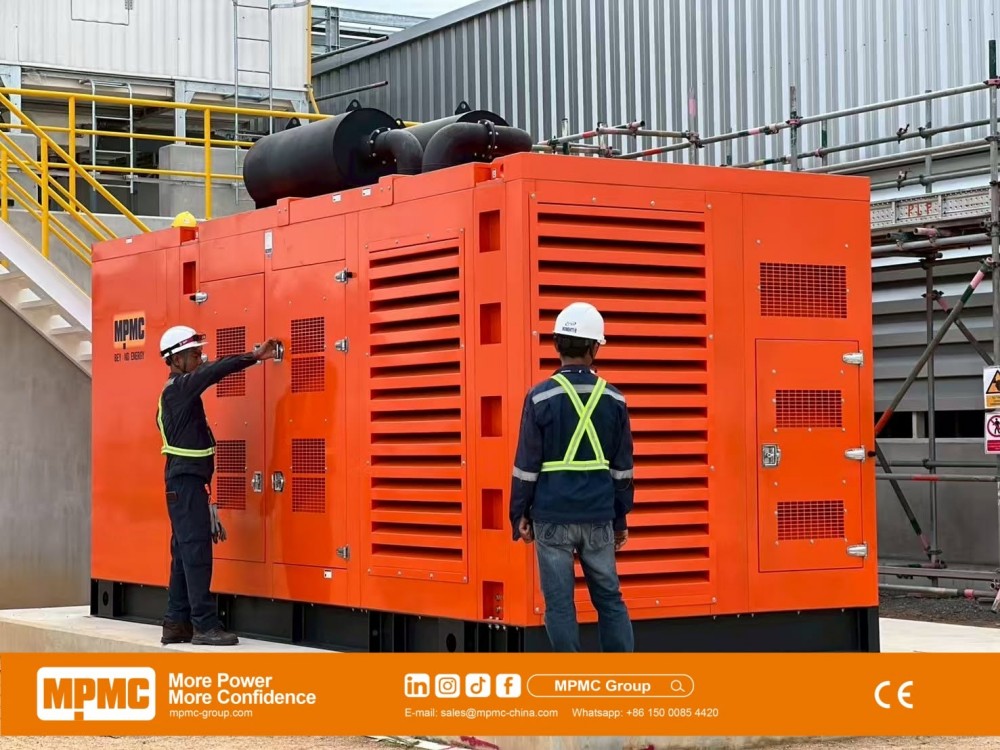

MPMC SR2 Series 1000 kVA silent generator set — Perkins 4008TAG2A with Stamford S6L1D-E4

Start From the Protected Panel

Hospital backup schemes protect a defined clinical panel rather than the whole estate, and defining that panel is what makes a rating adequate rather than wasteful. Theatres, intensive care, imaging, laboratory refrigeration, lifts and communications each behave differently, and the total connected load is invariably larger than the load that genuinely cannot be interrupted.

Converting the requirement comes next. Sets are rated in both kW and kVA at a standard 0.8 power factor, so a 500 kW to 2000 kW brief corresponds to 625 kVA to 2,500 kVA. A quotation expressed in the other unit describes a different machine, so the first clarification on any offer is which unit the figure uses and which duty the rating assumes.

Configurations Published Across the Band

Route	Published span	Engine and alternator listed	Where it suits a hospital
Silent enclosure (SR2)	1,000 kVA documented	Perkins 4008TAG2A with Stamford S6L1D-E4	Plant compounds close to occupied buildings
Containerised, single engine	800–3,750 kVA	Cummins, Perkins, Baudouin, MTU, Scania, SDEC	A standalone energy centre outside the building
Containerised, twin engine	1,250–3,000 kVA	Baudouin, Scania, Perkins	Redundancy within one footprint
Documented hospital build	1,500 kVA × 2	Perkins 4012-46TAG2A with Leroy-Somer LSA 50.2 L8 312	3 MW critical load served by two units in parallel

Choosing Between Enclosure Formats

Within this band a hospital normally chooses between a silent enclosure sited in a plant compound and a containerised unit acting as a standalone energy centre. The silent format suits a set placed within an existing compound where civil works are constrained; the containerised format arrives as a completed installation with its own cooling, cabling and control, removing a building and a site electrical fit-out from the scope.

Access for maintenance differs between them and is worth checking against the intended position, since a set that cannot be serviced without closing an access road creates an operational problem that does not appear on the specification.

Provisions That Make a Standing Set Start

A backup set proves nothing between tests, and the items that answer that appear in delivered projects rather than in headline specifications. MPMC’s documented 4 MW New Zealand hospital installation is listed with 2 × 3 kW engine block preheaters and an internal 500 litre fuel tank with an automatic filling device, controlled by DSE8610 with an ABB 3200 A three-pole air circuit breaker, with a 3 MW commercial installation listed with a 9 kW preheater.

Preheating keeps the engine ready to accept load rather than warming through first; automatic filling prevents fuel ageing or running low unnoticed; automatic mains failure detection removes the human step from the sequence. Each should be specified deliberately rather than left as a quotation option.

MPMC SR2 Series 1000 kVA silent generator set — Perkins 4008TAG2A with Stamford S6L1D-E4

Maintaining Without Losing Cover

A hospital cannot take its backup out of service for a scheduled service, which is an argument for dividing the duty across units. MPMC’s documented 3 MW Chinese hospital installation is listed as two 1,500 kVA units in parallel on Perkins 4012-46TAG2A engines with AREP excitation and an R450 regulator under DSE7320 control.

MPMC lists multi-unit parallel operation with load sharing through DSE or DEIF AGC controllers and motorised circuit breakers, supporting N+X redundancy with master-standby rotation. Rotation matters in standby service because a machine that has never run is unproven, and distributing hours keeps every set demonstrated.

Transfer Behaviour and Acoustic Position

When the transfer completes the protected load arrives as a block, including lifts, chillers and air handling whose starting current exceeds their running load. MPMC lists published steady-state figures of frequency stability at ≤±0.25% at constant load and voltage regulation of ±1%; transient behaviour is a separate measurement, so the ISO 8528-5 performance class should be specified and demonstrated by test.

On the acoustic side MPMC lists SR2 alongside SR, SE and SREU silent enclosures and containerised super-silent types between 75 and 91 dB(A) at 1 m at 75% load. Published project figures use different bases — 85 dB(A) at 1 m on one hospital installation, 75 dB(A) at 7 m on a commercial one — so every offer should be restated on one basis and the derated output requested under the actual enclosure.

Service Coverage Over the Asset’s Life

MPMC’s published after-sales model routes engine and alternator support through those manufacturers’ global service networks, with its own obligation covering manufacturing quality and parts replacement. Published warranty for the diesel genset series is 1 year or 1,000 operating hours, with engine, alternator and controller coverage following each original manufacturer’s terms.

For a hospital the hour limit rarely binds because the set runs so little; the calendar term does. That makes a named local service arrangement more valuable than warranty length, since routine servicing and load-bank testing continue for the asset’s whole life. Because MPMC lists engines from Cummins, Perkins, Baudouin, MTU, Scania, Volvo, SDEC and others on a common platform, engine selection can follow the service map of the project country.

Confirmations for a Hospital Enquiry

• Define the protected clinical panel and its load, separately from site demand.

• Confirm whether the quotation is expressed in kW or kVA, and at what power factor.

• State the largest block load as a percentage of set rating, with permitted deviation and recovery time.

• Require the ISO 8528-5 performance class to be demonstrated by test.

• Specify block preheating, battery charging, automatic filling and mains failure control.

• Decide whether the duty is split across units so maintenance can proceed without losing cover.

• State the noise limit at its assessment position and require all offers on one measurement basis.

• Agree the load-bank testing interval and identify the named authorised engine service centre.
